Fällbach
The most powerful felling crane
The felling crane − a superior partner in tree felling
Special product features
- Freeway capable vehicle, up to 80 km/h speed, different tires available

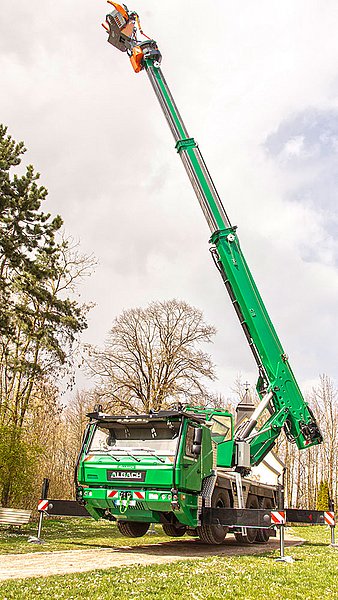

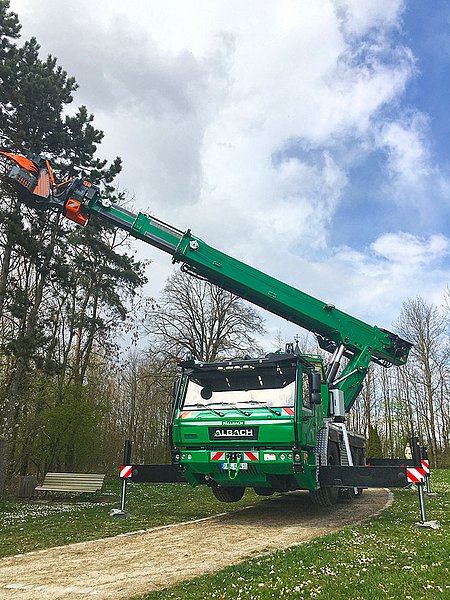

- Choice of 3-section telescopic boom with 22.3 meters or 5-section telescopic boom with 31,1 meters cutting height
- Air-conditioned, spacious two-man cab
- High driving comfort and low fuel consumption thanks to state-of-the-art drive technology with Cummins diesel engine and automated 12-speed gearbox
- Compact dimensions and small turning circle of 8.4 meters thanks to all-wheel steering
- All-wheel drive (6x6) can be engaged
- Strong load capacity, piece weights up to 4t possible.
- Powerful felling tongs with powerful harvester saw, up to 75kW (102HP) drive power at the saw motor
- Felling unit can be rotated endlessly on special swivel joint
- All hydraulic cylinders and hydraulic motors can be precisely controlled by lowering brake valves and are secured against line breakage
- Modern hydraulic system with electronic load-sensing control and large valve and line cross-sections for effective power transmission
- Automatic load moment limitation in the crane and support pressure monitoring in the chassis
- Multi-layer safety screens installed in the front and roof windows of the crane cab, providing the best possible protection against chain shot and falling branches
- Optional 3t hoisting winch available
– All Info on Fällbach –
Technical Data
Fällbach in detail
Learn more about this unique felling crane!

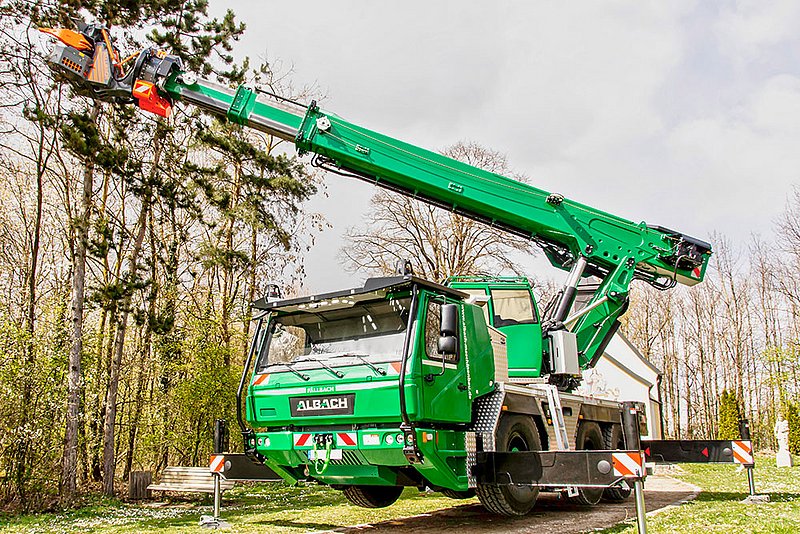

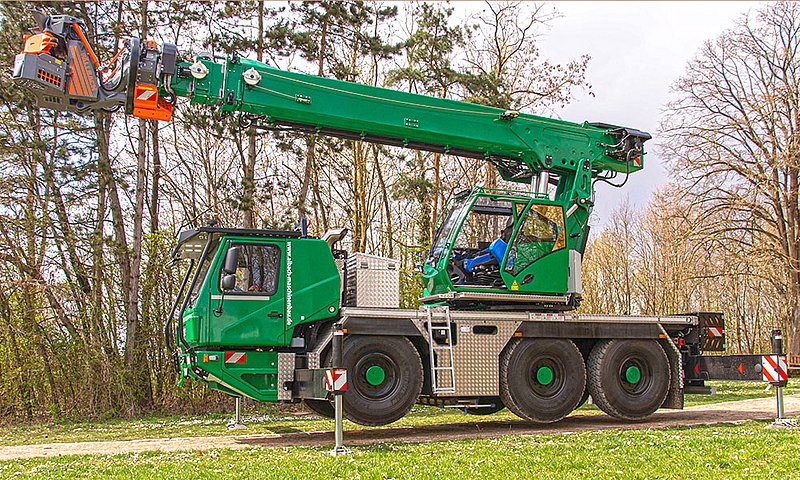

- Type Grove GMK3060 (3-axle)
- Independent suspension with hydropneumatic suspension
- Engine Cummins QSL9, 261 kW (355HP), Euromot Stage 5 / CARB Tier4 Final
- Transmission ZF-Traxon, 12-speed, automated
- Three-section main boom with a cutting height of up to 22.3 m

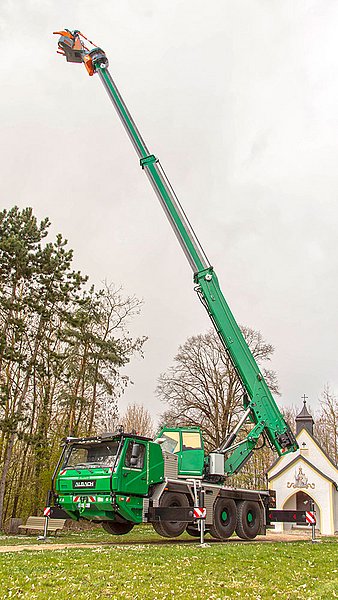

- Five-section main boom with up to 31,1 m cutting height
- Lifting capacity/unit weights up to max. 4 t
Product description || Download product catalog

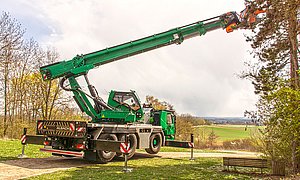

The professional for problem tree felling. With the felling crane, trees can be removed quickly and safely from the most difficult locations, even on steep slopes. Piece by piece, the tree is grabbed, sawed off and then safely and in a controlled manner laid down.
Standard equipment

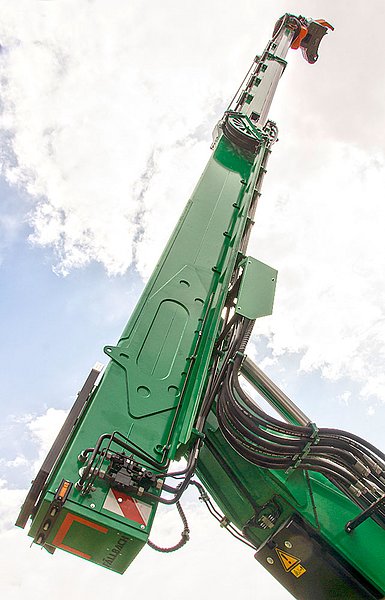

- Three-part or five-part main boom made of high-strength fine-grained structural steel, infinitely telescopic to 22.3 m or up to 31.1 m cutting height
- Horizontal reach max. 21 m or 29 m
- max. cutting height 22.3 m or 31.1 m
- boom adjustment angle from -54° to +80°

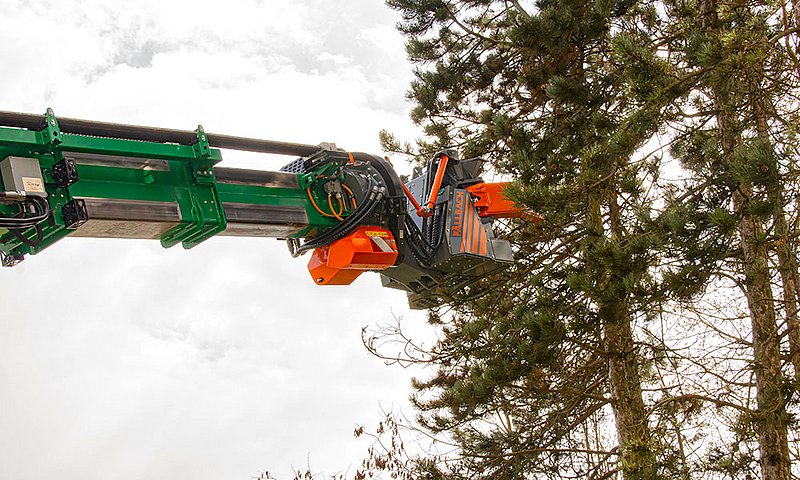

Felling head ZBZ105-360°
- Max. pick up capacity of 100cm trunk diameter
- Cutting capacity with 90cm bar max. 75cm
- Saw chain type: .404" and/ or 3/4"
- Grease lubrication of the saw chain to reduce lubricant consumption and increase service life
- Camera system on felling head
Upper carriage cab
- Clearly arranged control terminal for display of machine parameters and diagnostics
- Electrically extendable step at the cabin
- Moving of the felling crane from the upper carriage cabin
- Camera system for monitoring the undercarriage during the process
- Lifting and lowering of the suspension from the upper carriage cabin
- Automatic function for alignment of the felling crane while propping
